How Long Does It Take to Drill an Oil Well?

By Rig3DDrilling Operations6 min readPublished

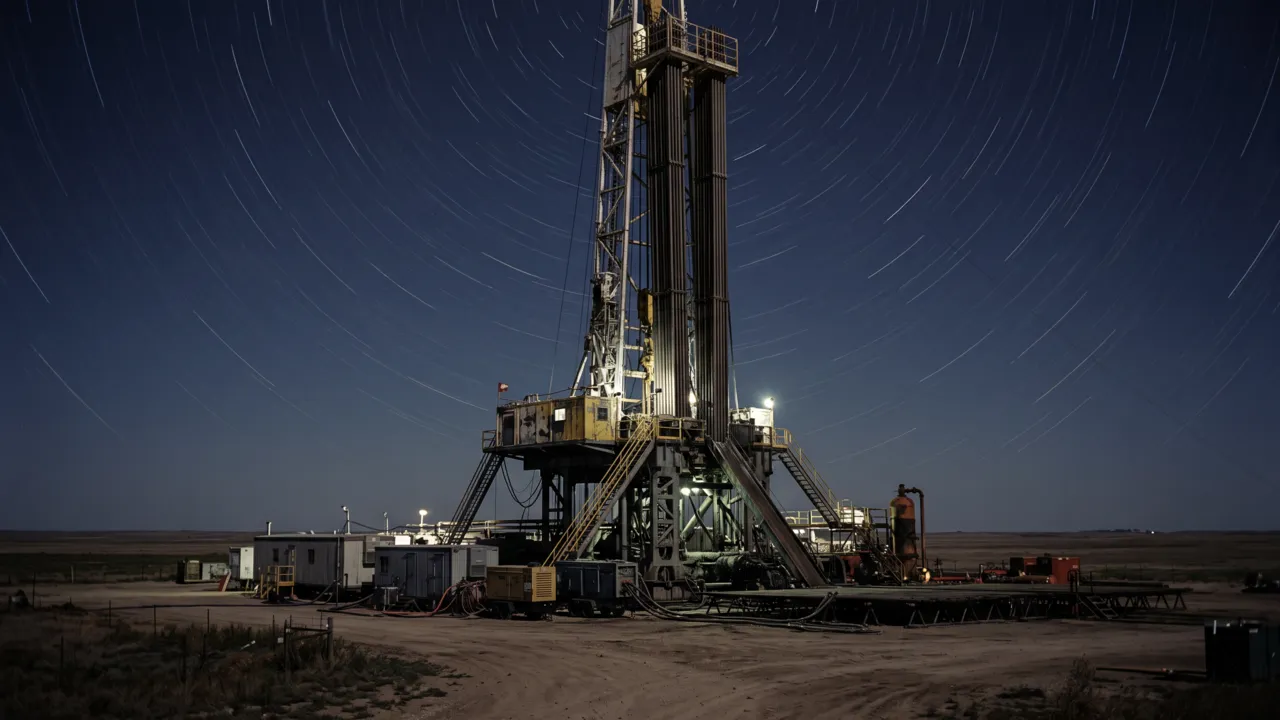

How Long Does It Take to Drill an Oil Well? - 3D Animation

Landowners ask it. Folks in town ask it when a rig goes up down the road. New hands ask it on their first hitch, usually around day nine. The honest answer is "it depends," but that's a lousy answer by itself, so I'll do better. How long does it take to drill an oil well?

Drilling an oil well usually takes anywhere from a few days to a few months, depending on how deep it goes, what kind of rock it passes through and whether it's vertical, horizontal or offshore. A shallow vertical well in easy ground can be drilled in less than a week. A typical modern onshore horizontal well in a mature shale play often takes somewhere around one to a few weeks of drilling. Deep, high-pressure or deepwater offshore wells can take months. Those numbers cover drilling only, from spud to total depth, not the permitting before or the completion work after.

How Many Days Does It Take to Drill a Well?

Here's a rough guide by well type. Treat these as general ranges, not promises. Every field and every rig is different.

Well typeTypical days to drill (spud to TD)
Shallow vertical well, soft rockA few days to about a week
Deeper vertical wellOne to several weeks
Onshore horizontal shale well, experienced crewRoughly one to a few weeks
Deep, hot or high-pressure wellSeveral weeks to months
Deepwater offshore wellOften months

Shale wells are a good example of how far the industry has come. They're longer than ever, with laterals that run for miles, yet many are drilled faster than shorter wells were years ago. Better bits, better rigs, pad drilling and crews that drill the same formation over and over all chip time away.

What Are the Main Drilling Time Factors?

A handful of things set the clock on any well. Here are the big ones:

Depth is the obvious one, and it's worth understanding how deep oil wells go before you guess at a timeline. A well that reaches a deep target through hard rock is a whole different animal from a shallow one.

What Slows Drilling Down?

Drilling is "making hole," and anything that isn't making hole is lost time to somebody. Here's what slows drilling down the most:

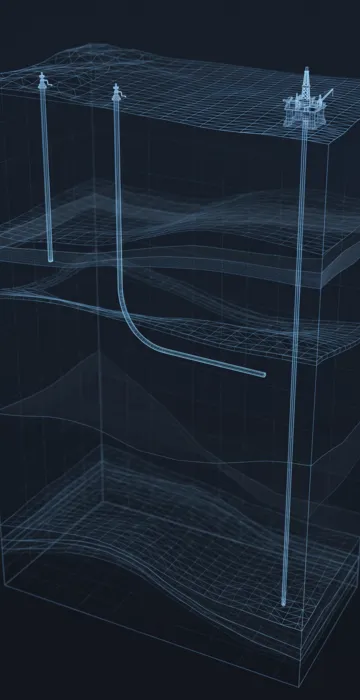

How Long Does It Take to Drill an Oil Well? - 3D Wireframe Animation
How Long Does It Take to Drill an Oil Well? - 3D Wireframe Animation

Trips

Every time a bit wears out or a downhole tool fails, the crew has to trip the whole string out and back in. On a deep well, a round trip can eat a big chunk of a day. That's why a long-lasting bit is worth its price.

Trouble

Stuck pipe, lost circulation, a kick to circulate out, a fishing job for something left in the hole. Trouble time is the biggest wild card in any well plan. One bad stuck pipe event can add days or more.

Waiting

Waiting on cement, waiting on weather, waiting on a part, waiting on a service crew. Offshore, weather alone can shut things down for days.

Equipment Repairs

Mud pumps, top drives and drawworks break eventually. A rig with good preventive maintenance spends less time broke, and that shows up on every well.

Why Do Horizontal Wells Drill So Fast Now?

I've seen this change happen, and honestly it still impresses me. Horizontal wells have gotten longer while drilling times have often dropped. A few reasons:

The EIA tracked how much oil and gas new wells added per rig in its Drilling Productivity Report, and the rise in rig productivity in shale basins was one of the big stories of the last couple of decades.

Why Do Offshore Wells Take So Much Longer?

Offshore wells fight a few extra battles. In deep water, the rig has to run a riser and a subsea BOP down to the seafloor before it can drill much at all, and every trip goes through all that water before it reaches the hole. That adds hours to every run.

Many deepwater wells also have more casing strings, because the pressure window between kicking the well and breaking down the rock can be narrow. Each extra string is more trips, more cement and more testing. Add weather delays, and it's easy to see why offshore wells are measured in weeks and months, not days.

The cost of that time is huge offshore, so the planning is just as careful as the drilling.

How Long From Permit to First Oil?

Drilling time is only part of the story. The full timeline usually looks something like this:

  1. Leasing, geology and well planning.
  2. Permitting with the state or federal regulator.
  3. Building the road and pad.
  4. Rig up and drilling, spud to TD.
  5. Completion work, which in shale often includes hydraulic fracturing.
  6. Hooking up flowlines and production equipment.

The planning and permitting can take months or longer. Completions can take weeks on a single well and longer on a big pad. So even when the rig only spends a couple of weeks on a well, it's often a good while before that well sends oil down a pipeline.

Does Faster Drilling Mean Less Safe Drilling?

It shouldn't, and on good rigs it doesn't. Most of the time saved in modern drilling comes from better equipment and better planning, not from people rushing.

Rushing is how hands get hurt and how wells get into trouble. A crew that skips a flow check to save five minutes can end up spending days circulating out a kick. The fastest wells I've seen were drilled by crews who did everything the right way, every time. Steady beats hurried.

So, How Long Does It Take to Drill an Oil Well? Days to Months

How long it takes to drill an oil well depends on depth, rock, well path, casing strings, the rig and the crew. Shallow wells can be drilled in days, many modern horizontal wells in a week or a few, and deep or offshore wells in months.

If you're trying to estimate your own well's timeline, ask the operator for the planned spud-to-TD days and how many casing strings are in the design. That'll tell you more than any general rule. Then add the time for completions, and you'll have a realistic picture.
