What Is a PDC Bit?
Walk past a rack of bits on almost any land rig today and most of them will look the same: no cones, no bearings, just a solid steel or matrix body with rows of shiny round cutters. That's a PDC bit, and it has changed how fast wells get drilled. If you're new to drilling, the name sounds complicated, but the idea behind it is simple once you see how it cuts. So what is a PDC bit, and why has it become the go-to bit for so much of the footage drilled today?
A PDC bit is a fixed cutter drill bit that uses polycrystalline diamond compact (PDC) cutters, made of man-made diamond bonded to tungsten carbide, to shear rock as the bit rotates. The cutters sit on blades that run from the center of the bit out to the gauge. Instead of crushing rock like a roller cone bit, each cutter scrapes off a layer, much like a wood plane, which takes less energy and drills faster in suitable rock. With no moving parts, PDC bits can stay on bottom for long runs. They work best in soft to medium-hard formations, and modern cutters handle harder rock than early designs could.
What Does Polycrystalline Diamond Compact Mean?
Polycrystalline diamond compact is the material on the face of each cutter. Let's break the name into pieces:
- Polycrystalline: made of many tiny diamond crystals grown together, not one big crystal.
- Diamond: synthetic diamond, made in a press at extreme pressure and temperature.
- Compact: the diamond layer is pressed and bonded onto a tungsten carbide base, forming a small, solid cylinder.
The diamond layer, called the diamond table, does the cutting. The tungsten carbide substrate gives it a tough backing that can be brazed into a pocket on the bit's blade. The SLB glossary entry for the polycrystalline diamond compact bit gives the formal definition.
How Does a PDC Bit Cut Rock?
A PDC bit cuts by shearing. As weight pushes the bit into the rock and the bit turns, each cutter digs in slightly and scrapes off a thin layer. The cuttings peel away in chips or ribbons, and mud from the nozzles washes them up the hole.
Here's the key idea. Rock is much weaker when you shear it than when you crush it. A roller cone bit has to push teeth straight down hard enough to fracture rock. A PDC cutter only has to get under the edge and drag. That's why PDC bits often drill faster for the same weight and energy.
Cutters are set at a slight backward tilt, called back rake. More back rake makes the cutter tougher but less aggressive. Less back rake bites harder but is more likely to chip. Designers tune this across the bit face.
What Are the Parts of a PDC Bit?
A PDC bit has only a few main parts, which is part of its appeal.
| Part | What it does |
|---|---|
| Body | Steel or tungsten carbide matrix. Steel is tough and easy to repair. Matrix resists erosion better. |
| Blades | Raised ribs that carry the cutters. Fewer blades are more aggressive. More blades spread the load for durability. |
| PDC cutters | Do the cutting. Size, shape and placement set the bit's behavior. |
| Nozzles | Jet mud to clean and cool the cutters. |
| Gauge pads | Hold the hole at full diameter and help stability. |
| Junk slots | Channels between blades where cuttings flow away. |
The bit's face profile is described in zones: the cone in the center, the nose, the shoulder and the gauge at the outside. A short, flat profile tends to steer more easily. A longer profile spreads wear across more cutters.
What Are PDC Cutters Made Of, and Why Do They Fail?
PDC cutters are synthetic diamond bonded to tungsten carbide, and they're incredibly hard. But hard doesn't mean indestructible. They fail in a few predictable ways:
- Impact damage: chips or broken cutters from vibration, hard stringers or bouncing on bottom.
- Heat: friction can damage the diamond layer if the cutters run too hot, so cooling with mud matters.
- Abrasive wear: slowly flattens the cutters in sandy or abrasive rock.
- Delamination: the diamond table separates from the carbide backing.
Cutter makers have improved heat resistance a lot. One common method is leaching, which removes the metal catalyst from the outer part of the diamond table, so the diamond stays stronger at high temperatures.
PDC vs. Tricone: Which Is Better?
In many wells, especially long horizontal wells in shale, the PDC bit is the better choice. In very hard, broken or mixed rock, a roller cone can still win. This table shows the main differences.
| Feature | PDC bit | Tricone bit |
|---|---|---|
| Cutting action | Shearing | Crushing and gouging |
| Moving parts | None | Cones on bearings |
| Speed in suitable rock | Usually faster | Usually slower |
| Run life | Often very long | Limited by bearings and teeth |
| Hard, broken rock | Cutters can chip | Handles impact well |
| Torque | Higher | Lower and steadier |
| Cost | Higher up front | Lower up front |

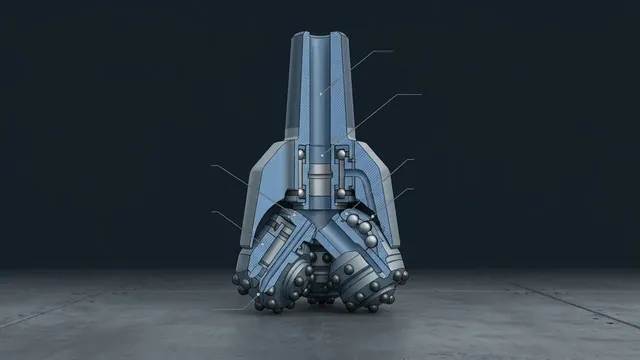

If you want to see how the other side works, our article on the tricone bit explains cones, teeth and bearings step by step.
Why Did PDC Bits Take Over Most Footage?
PDC bits took over much of the footage because they drill faster and longer in the rock types that make up most wells. Several changes came together to make that happen:
- Better cutters: tougher, more heat-resistant diamond tables made PDC bits last in harder rock.
- No bearings: with nothing to wear out mechanically, a good PDC bit can drill an entire section in one run.
- Steering tools: mud motors and rotary steerables pair well with PDC bits, which can be designed to steer predictably.
- Horizontal drilling: long laterals in shale reward a bit that can stay on bottom for a long time.
- Better design software: engineers can model cutter loads and vibration before a bit is built.
Fewer trips mean less rig time, and that's where the real savings come from.
What Problems Do PDC Bits Have?
PDC bits have a few weak spots that drillers learn to manage:
- Bit balling: sticky shale packs between the blades and stops the cutters from biting. Good hydraulics and mud chemistry help.
- Whirl: the bit rolls around the hole off-center, damaging cutters. Stable bit designs and good stabilization help.
- Stick-slip: the bit stalls and then spins free, over and over. Adjusting weight, rotary speed or using downhole tools can help.
- Hard stringers: thin, hard layers can chip cutters when the bit hits them at speed.
Newer features like depth-of-cut limiters, which stop cutters from biting too deep, help with both vibration and impact damage.
How Should You Start a New PDC Bit on Bottom?
A new PDC bit needs a gentle start. Its cutters are sharp and unworn, and the bottom of the hole still carries the pattern left by the previous bit. Slamming a fresh bit onto that uneven bottom is an easy way to chip cutters in the first few feet.
A common approach looks like this, though the bit supplier's guidelines and well-site procedures always come first:
- Trip in carefully, slowing down through tight spots, ledges and the casing shoe.
- Wash down the last stretch to bottom with the pumps on, to clear any fill.
- Tag bottom lightly, then drill the first foot or so at low weight and moderate rotary speed to cut a new bottomhole pattern.
- Increase weight and speed in steps, watching torque and rate of penetration.
- Run a short drill-off test to find the weight and speed combination that drills best without vibration.
It only takes a few minutes, and it protects the cutters that have to last for the whole run.
What Is a PDC Bit, and When Should You Use One?
A PDC bit is a fixed cutter bit with synthetic diamond cutters that shear rock instead of crushing it. It has no moving parts, it drills fast in suitable rock and it can last for very long runs.
Reach for a PDC bit in soft to medium-hard formations, in shales, and in long directional or horizontal sections. Keep a roller cone in mind when the rock is very hard, broken or full of surprises. Then let the offset well dull grades and the cost per foot guide the final choice.
